Personal Tracker

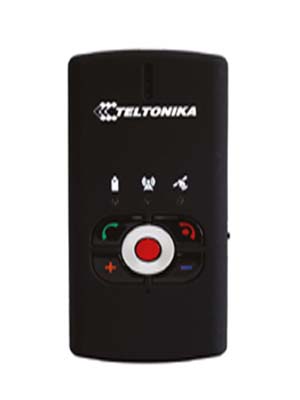

Teltonika GH3000
GH3000 is an easily configurable smart tracking device combining GPS and GSM technologies. The device can be fully adapted to user requirements. Its main purpose is to act as a mobile tracking client for various security system solutions and applications.It provides two way communication too.
Specifications
- GPS Sensitivity -160dBm, 50-channels
- Dual-band (optional)
- Internal memory 1Mb
- Micro USB connector
- Five keys for a function execution
- Recommended operating temperature 0 up to 50C
- Storage temperature -20 up to 60C
- Three LED indicators for device status indication
- Weight 80g
- Battery 1050mAh (Li-ion)
- Dimensions 92x44x18
- Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
Features
- Man down function: movement sensor for fall detection and power saving
- Alarm button for data and voice transmission
- Voice calls
- Loudspeaker
- Polygonal Geo-fence zones
- Parking function
- Silent call
- Modem emulation
- Remote control by SMS
Applications
- Outdoor safety for elderly people
- Lone worker protection (Man Down function)
- Children protection
- Asset security
- Marketing
- Valuable Bags & Valuable Assets

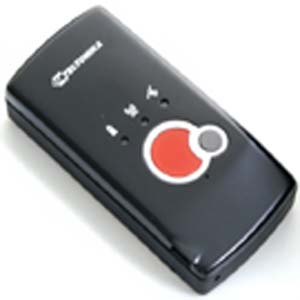

Teltonika MH2000
MH2000 is an easily configurable smart tracking device combining GPS and GSM technologies. The device can be fully adapted to user requirements. Its main purpose is to act as a mobile tracking client for various security system solutions and applications.
Specifications
- GPS Sensitivity -161dBm, 50-channels
- Dual-band (optional)
- Internal memory 24 coordinates
- Micro USB connector
- Two keys for a function execution
- Recommended operating temperature 0 up to 50C
- Storage temperature -20 up to 60C
- Three LED indicators for device status indication
- Weight 80g
- Battery 1050mAh (Li-ion)
- Dimensions 92x44x18
- Sending acquired data via SMS
- Battery Life 24 coord/day: 100 Hrs
- Battery Life 01 coord/day: 260 Hrs
- Battery Life sleep: 300 Hrs
Features
- Easy to use and configure
- Easy accessible Alarm button
- Long battery life
- 65 channel GPS receiver
- Dual band GSM module
- SMS requests, responses and configuration
- Remote configuration
- Online tracking / 24 coordinates history
- Personal security and recovery
- Notification about discharged battery
Applications
- Child tracking and security
- Emergency companies
- Service companies(Personal tracking)
- Hospitals and other health-care institutions
Vehicle Tracker

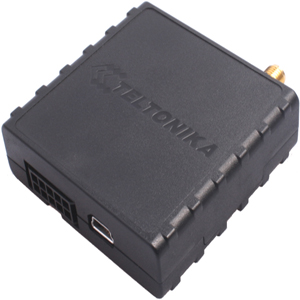

Teltonika FM1100
FM1100 is light terminal with GPS and GSM connectivity, which is able to get device coordinates and other data and transfer them via GSM network. This device is perfectly suitable for applications where location acquirement of remote objects is needed. So you can track your remote objects (trucks, cars etc) quickly and easily.
In case of losing connection FM1100 can store up to 8000 records, and once the connection is established the device will send stored data via GPRS. So you won't lose your data (coordinates, sensors data and etc.).
FM1100 can perform tasks on remote objects, such as monitoring engine status, controlling truck's door etc.
Specifications
- GPS Sensitivity -161dBm, 65-channels
- Quad-band 900/1800 MHz; 850/1900 MHz
- GPRS class 10 (up to 85, 6 kbps)
- Internal memory can store up to 8000 records
- 1 Digital Input Reserved for Ignition Status Monitoring
- 2 Digital Inputs
- 2 Digital Outputs
- 1 Analog Input (10V or 30V range)
- 1-Wire protocol
- Power supply (+10....+30)V DC
- 2 Status LEDs
- USB Port
- Configuration and firmware upload (FOTA and via USB cable)
- External GSM antenna (SMA connector)
- External GPS antenna (MCX connector)
Features
- GPS and I/O data acqusition
- Real Time Tracking
- Smart algorithm of data acquisition (time, distance, angle, ignition and event based)
- Sending acquired data via GPRS(TCP/IP and UDP/IP protocols)
- Smart algorithm of GPRS connections(GPRS traffic saving)
- Operating in roaming networks (preferred GSM providers list)
- Events on I/O detection and sending via GPRS or SMS
- Scheduled 24 coordinates SMS sending
- 5 Geo fence zones (rectangular or circle)
- Deep Sleep Mode (saving vehicle's Battery)
- Inbuilt Motion Sensor
- Small and easy to mount case
- Roaming dependent operation (GPRS traffic saving in roaming zones)
- Driver behavior monitoring (Acceleration / Breaking / Cornering notification to minimize the vehicle exploitation costs)
Applications
- Track and Trace
- Road assistance
- International logistics
- Personal car and van tracking
- Fleet Management

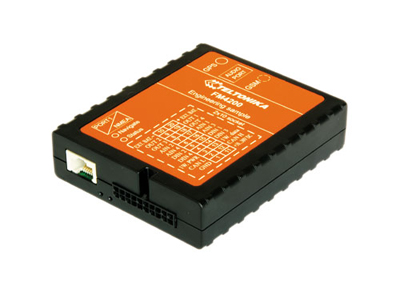

Teltonika FM4200
FM4200 is a terminal with GPS and GSM connectivity, which is able to get device coordinates and transfer them via GSM network. This device is perfectly suitable for applications where location acquirement of remote object is needed. So you can track your remote objects (Trucks, Cars, Ships, etc.) quickly and easily. It has a rechargeable battery inside and special controller for power management. Also there is an option of using external backup battery. Thus it can operate for up to 48 hours in Normal (Sending via GPRS) mode with external backup battery. FM4200 can perform tasks on remote objects, such as monitoring temperature, engine status, fuel consumption, controlling truck's door, etc.
Specifications
- GPS Sensitivity -161dBm, 65-channels
- Dual-band GSM 900/1800 MHz
- GPRS class 10 (up to 85.6 kbps)
- Internal memory can store up to 7500 records
- 1 Digital Input Reserved for Ignition Status Monitoring
- 3 Digital Inputs
- 4 Digital Outputs
- 4 Analog Input (10V or 30V range, 10 bit resolution)
- 1-Wire protocol
- CAN interface for FMS interface of trucks
- RS232 port which could be used for external peripheral data acquisition
- Voice function
- Power supply (+10....+30)V DC
- 2 Status LEDs
- USB Port
- Configuration and firmware upload (FOTA and via USB cable)
- External GSM antenna (SMA connector)
- External GPS antenna (MCX connector)
Features
- GPS, I/O, 1-Wire, CAN data acquisition
- Real Time Tracking
- External Sensors connection capability
- Smart algorithm of data acquisition (time, distance, angle, ignition and event based)
- Sending acquired data via GPRS(TCP/IP and UDP/IP protocols)
- Smart algorithm of GPRS connections(GPRS traffic saving)
- Operating in roaming networks (preferred GSM providers list)
- Events on I/O detection and sending via GPRS or SMS
- Scheduled 24 coordinates SMS sending
- 5 Geo-fence zones (rectangular or circle)
- Deep Sleep Mode (saving vehicle's Battery)
- Inbuilt Motion Sensor
- Small and easy to mount case
- Roaming dependent operation (GPRS traffic saving in roaming zones)
- Driver behavior monitoring (Acceleration / Breaking / Cornering notification to minimize the vehicle exploitation costs)
Applications
- Track and Trace
- Road assistance
- International logistics
- Personal car and van tracking
- Fleet Management
- Cold chain Management
